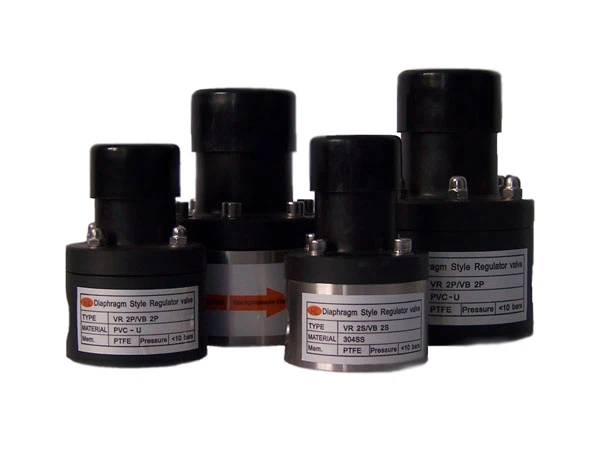

UPVC Back Pressure Valve/ Plastic Back Pressure Valve/PVC Pressure Control Valve

Create pressure difference on both sides of a back pressure valve
Prevent siphoning and eliminate varing dosage rates
Used with a pulsation dampener to reduce water hammer

Send Inquiry

With dependable high-quality method, fantastic standing and ideal purchaser assistance, the series of products produced by our firm are exported to many countries and regions for 45 HP Stubble Cleaner Gearbox, Planetary Gearbox For Concrete Mixer XHG15, Agricultural Gearbox. We are committed to maintaining an industry leader position, implementing a positive branding strategy and full quality management. Welcome to contact us and your enquiry will be replied as soon as possible.

MAIN FEATURES

○Create pressure difference on both sides of a back pressure valve

○Prevent siphoning and eliminate varing dosage rates

○Used with a pulsation dampener to reduce water hammer

○Protect piping ,joint and fittings from pulsation and vibration

○Used with other pumping accessories for best effect

SPECIFICATION

TYPE	MATERIAL	（mm） INSIDE NOMINAL DIAMETER(mm)	（Mpa） PRESSURE	SIZE	CONNECTIONS
D(mm)	H(mm)
HLBF-P6/0.3	Plastic	6	0.1-0.3	65	95	Rc1/8“
HLBF-P8/0.3	Plastic	8	0.1-0.3	65	95	Rc1/4“
HLBF-P10/0.3	Plastic	10	0.1-0.3	65	95	Rc3/8“
HLBF-P15/0.3	Plastic	15	0.1-0.3	65	115	Rc1/2“
HLBF-P20/0.3	Plastic	20	0.1-0.3	85	145	Rc3/4“
HLBF-P25/0.3	Plastic	25	0.1-0.3	85	150	Rc1“
HLBF-P32/0.3	Plastic	32	0.1-0.3	118	200	Rc11/4“
HLBF-P40/0.3	Plastic	40	0.1-0.3	150	250	Rc11/2“
HLBF-P50/0.3	Plastic	50	0.1-0.3	160	318	Rc2“
HLBF-P65/0.3	Plastic	65	0.1-0.3	178	375	Rc21/2“
HLBF-P80/0.3	Plastic	80	0.1-0.3	230	410	Rc3“
HLBF-P100/0.3	Plastic	100	0.1-0.3	255	450	Rc4“
HLBF-S6/0.3	Stainless steel	6	0.1-0.3	65	95	Rc1/8“
HLBF-S8/0.3	Stainless steel	8	0.1-0.3	65	95	Rc1/4“
HLBF-S10/0.3	Stainless steel	10	0.1-0.3	65	95	Rc3/8“
HLBF-S15/0.3	Stainless steel	15	0.1-0.3	65	115	Rc1/2“
HLBF-S20/0.3	Stainless steel	20	0.1-0.3	85	145	Rc3/4“
HLBF-S25/0.3	Stainless steel	25	0.1-0.3	85	150	Rc1“
HLBF-S32/0.3	Stainless steel	32	0.1-0.3	118	200	Rc11/4“
HLBF-S40/0.3	Stainless steel	40	0.1-0.3	150	250	Rc11/2“
HLBF-S50/0.3	Stainless steel	50	0.1-0.3	160	318	Rc2“
HLBF-S65/0.3	Stainless steel	65	0.1-0.3	178	375	Rc21/2“
HLBF-S80/0.3	Stainless steel	80	0.1-0.3	230	410	Rc3“
HLBF-S100/0.3	Stainless steel	100	0.1-0.3	255	450	Rc4“

Shell Materials:

Plastic: PTFE 、PP、UPVC、PVDF

Metal:304L、316L、Carbon steel 、Aluminium、Hastelloy C
